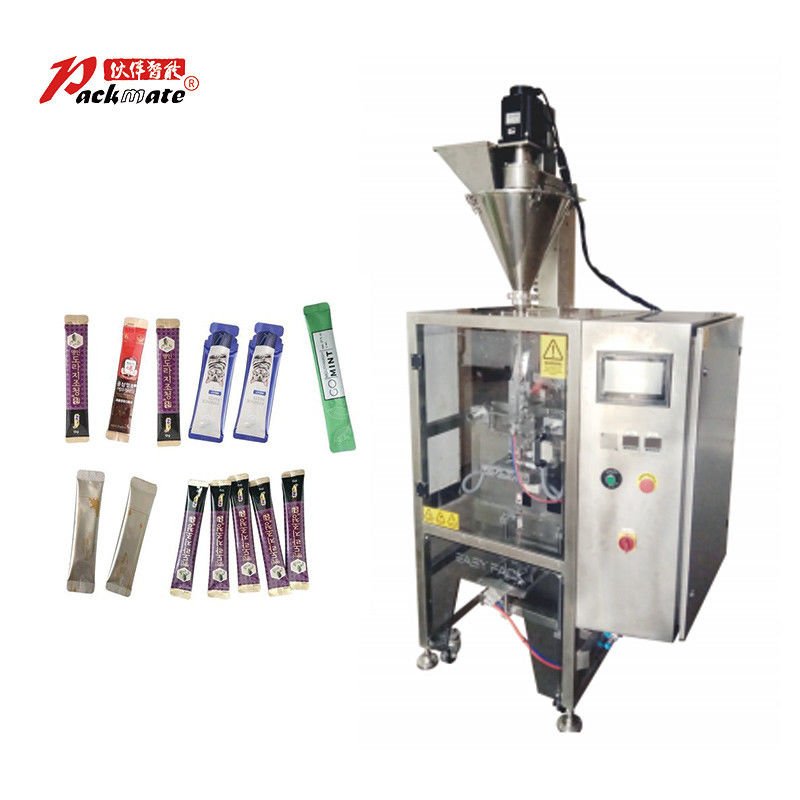

Automatic Milk Powder Packaging Machine 10g 100g 1000g Corn Flour Chili Powder Protein Spices Powder Sachet Bag Filling Packing Machine
·Suitable for packaging of granules, powders, and liquid products in industries such as pharmaceuticals, food, and daily chemical products with three or four side sealing
·This machine is a fully servo high-speed packaging model with complete functions and high configuration
·High production efficiency, 80-120 packages per minute
·Suitable for various types of roll film bag forming, it can achieve continuous bag cutting with sawtooth and flat mouth through different cutting methods
Servo motor bag pulling, high precision, precise bag length control
Enhanced heat sealing mechanism, servo control, low noise, clear sealing pattern, strong sealing performance
Independent rotating cutter, convenient for changing bag length and adjusting cutter position
Measurement is synchronized with the host to ensure that the feeding at any speed matches the host
| Specification |
|
| Model |
DS100G |
DS100P |
DS100L |
| Packing Material |
Granule |
Powder |
Liquid |
| Packing range |
1-50ml |
| Producing speed |
80-120 Bag/min |
70-110Bag/min |
70-100Bag/min |
| Bag style |
Three side or Four Side |
| Max film width |
Max:170mm |
| Bag width range |
25mm-85mm |
| Bag length range |
Bag length=40-120mm |
| Cutting way |
Rounded corners cutting,Sawtooth cutting,Flat cutting |
| Film diameter |
Paper roll diameter75mm,Film outside diameter320mm |
| Film tickness |
0.04-0.1mm |
| Film material |
Composite packaging material,for example:Polyester/pure aluminum foil/polyethylene |
| Power specification |
220V Phase,3KW |
220V Phase,4KW |
220V Phase,3.5KW |
| Air pressure and air consumption |
0.7mpa,0.6m³/Min |
| Outer dimension |
1300x1300×2650 |
1300x1300×2550 |
1300x1300x2500 |
| Equipment weigh |
350KG |
| The perfomance features will be some changed possibly according to different film,actual products.The specific parameter needs to confim with sales man |
